B09

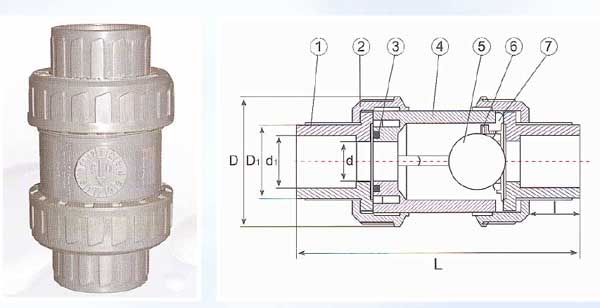

| No | Part | Material | Qty |
| 1 | End Connector | PVC | 2 |
| 2 | Union Nut | PVC | 2 |
| 3 | Stem O-Ring | EPDM | 2 |
| 4 | Body | PVC | 1 |
| 5 | Ball | PVC | 1 |
| 6 | Gland | PVC | 1 |
| 7 | Seat O-Ring | EPDM | 1 |
| DIMENSIONS – Diameter | ||||||
| d | D1 | D | I | L | PN | |
| 20 | 15 | 28 | 50 | 22 | 106 | 10 |
| 25 | 20 | 36 | 66 | 22 | 116 | 10 |
| 32 | 25 | 43 | 74 | 24 | 132 | 10 |
| 40 | 32 | 52 | 87 | 29 | 150 | 10 |
| 50 | 40 | 62 | 102 | 34 | 163 | 10 |
| 63 | 50 | 76 | 120 | 40 | 188 | 10 |
