Female Threaded True Union Ball Valve (for water)

B06

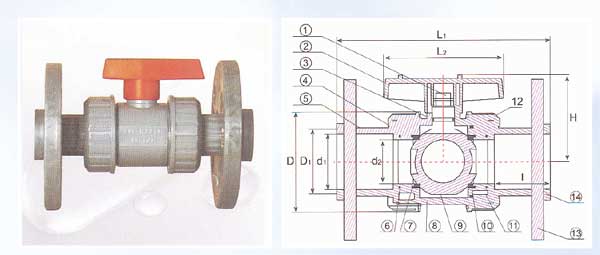

True Union Ball Valve with Flanges (for water)

>> Back to Products List

No Part Material Qty No. Part Material Qty
1 Stem U-PVC 1 8 Body PVC 1
2 Handle ABS 1 9 Ball PVC 1
3 Stem O-Ring EPDM 2 10 Seal PTEE 2
4 Union Nut U-PVC 2 11 Carrier PVC 1
5 End Connector U-PVC 2 12 O-Ring EPDM 1
6 Body O-Ring EPDM 2 13 Flange U-PVC 2
7 O-Ring EPDM 2 14 Flange Adaptor U-PVC 2



DIMENSIONS – Diameter
d1 d2 D1 D I L1 L2 H PN
20 14 26 50 22 100 65 53 10
25 19 31 66 22 113 80 59 10
32 24 38 74 24 113 85 68 10
40 32 49 87 29 127 97 79 10
50 40 61 102 34 144 117 94 10
63 45 74 120 40 162 134 106 10
75 60 88 135 44 224 161 113 10
90 80 105 189 54 267 200 144 10
110 100 132 216 83 306 240 164 10

>> Contact us for more details
